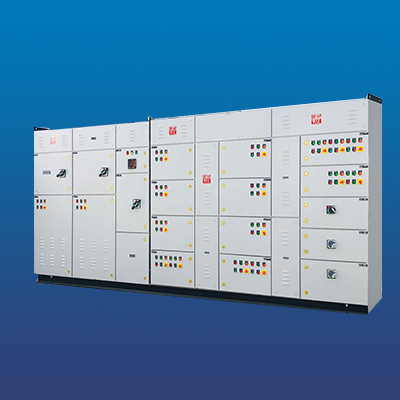

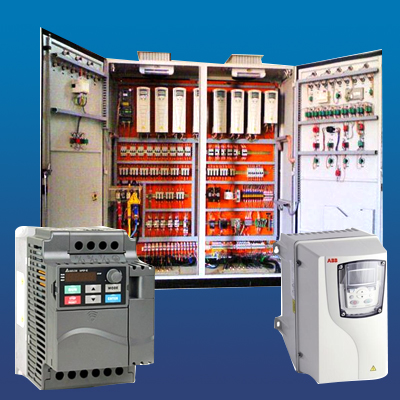

We provide Motor control center (MCC) for diverse industrial applications. MCC is an assembly of one or more enclosed sections having a common power bus and principally containing motor control units (Motor starters).MCC is used in a process plant to control various motor drives. A motor control center can include variable frequency drives, programmable controllers and metering. Our MCC panels can operate in co-ordination with DCS & BMS as and if req
| Applications | Operation, Control & protection motors with or without PLC/BMS Connectivity. |
|---|---|
| System | 3 Phase, 3 or 4 wire, 50Hz |
| Rated Current | Up to 6300 Amps |
| Operational Voltage | 110/230v 415v AC |
| Rated Insulation | 1000v |
| Rated Service Voltage | 690v |
| Ambient Temperature | 45 Deg C |
| Degree of Protection | IP42-IP54 |
| Bus Bar System | Interleaved above 1600A |
| Bus Bar | Aluminum or Copper |
| Ref. Standard | IEC61439-12009, IS:8623 |
| Feeder Configuration | Semi Draw out or Fix Type |
